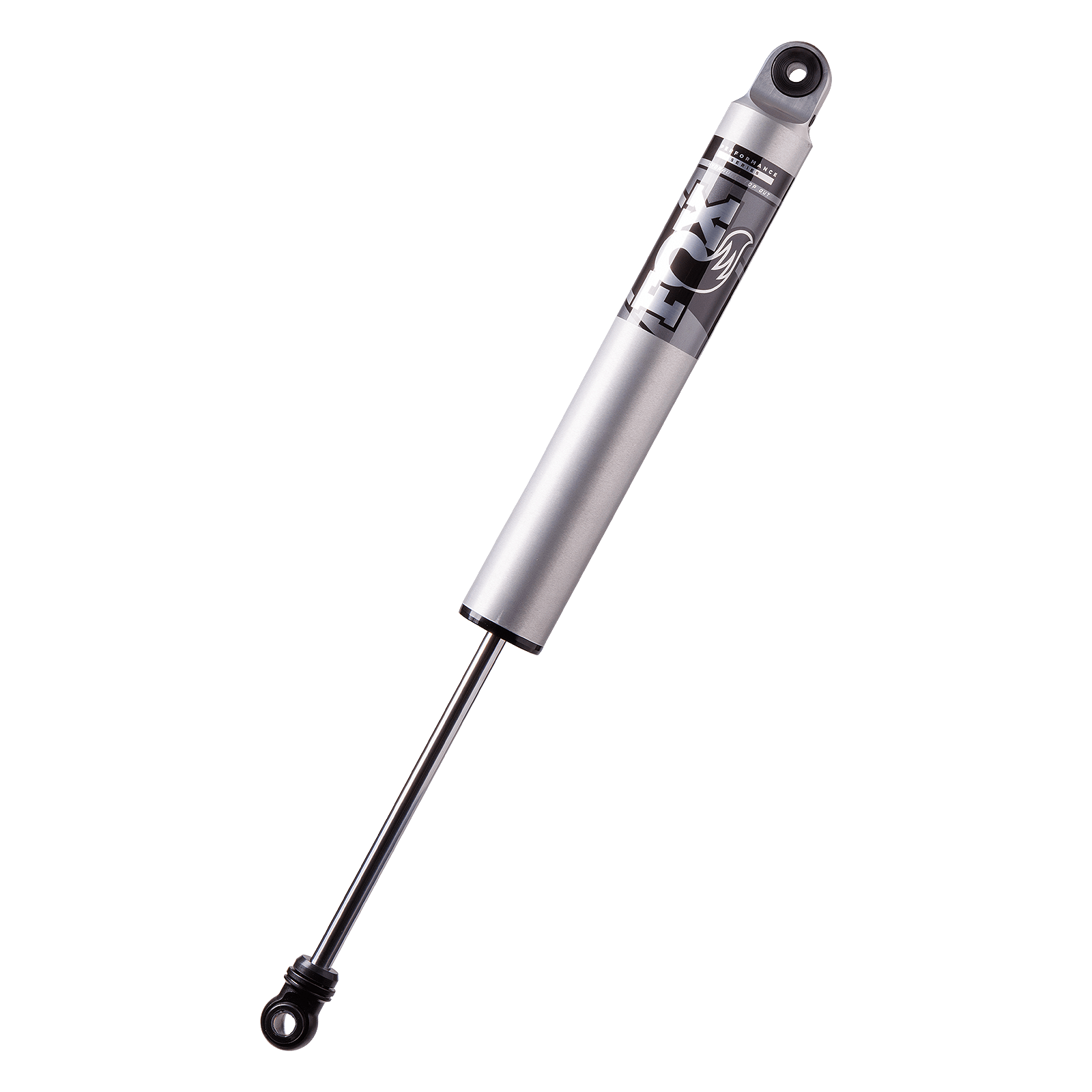

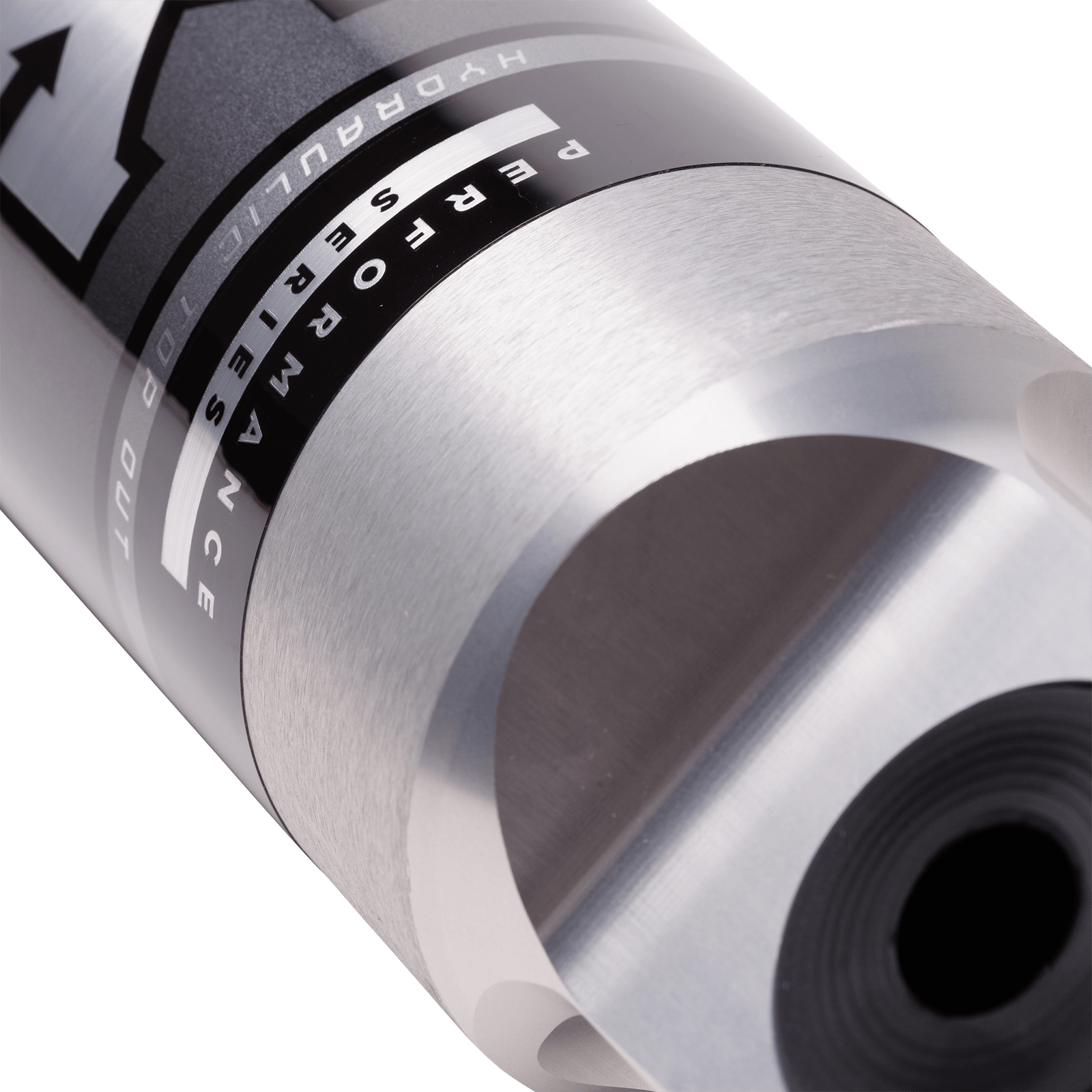

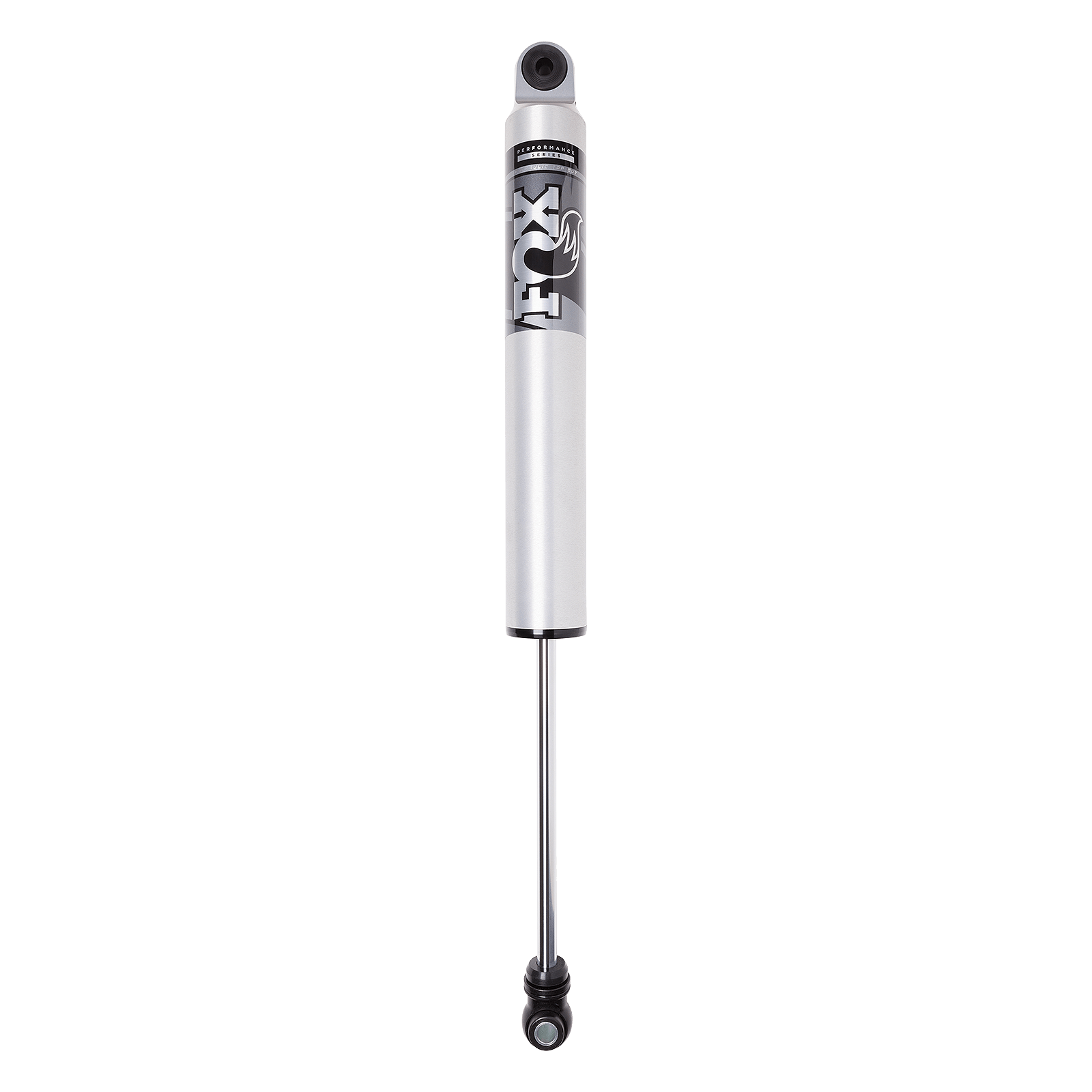

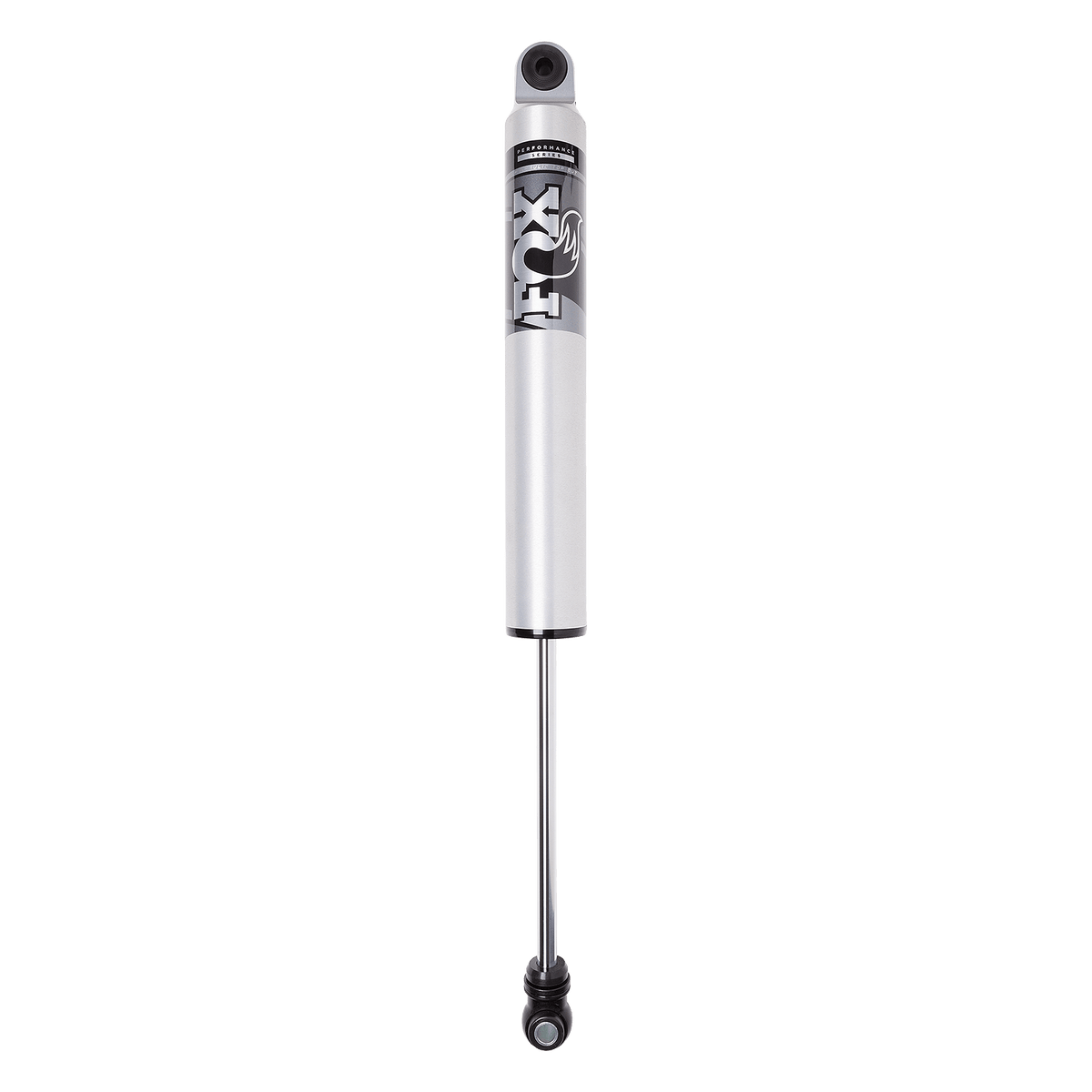

FOX 2.5 IFP Rear Shock w/HTO | 4-6 Inch Lift | Performance Series | Ford F250/F350/F450 Super Duty (17-27) 4WD

Brand: FOX
SKU: FOX98724021
Kit Component List

×

List Price

$359.95

Your Price

$359.95

Out of Stock

Subtotal: $359.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_001_P04.png

FOX 2.5 IFP Rear Shock w/HTO | 4-6 Inch Lift | Performance Series | Ford F250/F350/F450 Super Duty (17-27) 4WD

$359.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_001_P04.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_001_P01.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_001_P05.png

FOX 2.5 IFP Rear Shock w/HTO | 4-6 Inch Lift | Performance Series | Ford F250/F350/F450 Super Duty (17-27) 4WD

$359.95

Select Parts

  Description SKU Quantity List Price Your Price Inventory Inventory Status
No products present in the kit
OVERVIEW

Upgrade the on-road comfort and off-road control of your 2017-2027 Ford F-250, F-350 or F-450 Super Duty to FOX Performance Series 2.5 IFP (internal floating piston) front shocks with HTO (Hydraulic Top Out). The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.

Turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2.5” Impact extruded 6061-T6 aluminum shock body
  • Type II clear-anodized body plating
  • High-flow velocity-sensitive damping 5/8” hard chrome shaft
  • Internal floating piston (IFP)
  • Hydraulic Top Out (HTO) piston
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Adjustable Damping : Yes
  • Compressed Length : 21.29
  • Extended Length : 33.88
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lift Height : 4-6"
  • Lower Mount Type : Eyelet
  • Position : Rear
  • Shaft Diameter : 5/8"
  • Travel Length : 12.69
  • Type : Smooth Body IFP
  • Upper Mount Type : Eyelet
FITMENT
2017|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2018|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2019|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2020|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2021|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2022|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2023|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2024|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2025|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2026|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||;2027|Ford|F-450 Super Duty|*|4 X 4|*|*|7556|Shock Absorber|Each|1||||Rear|30||*|||||||||
