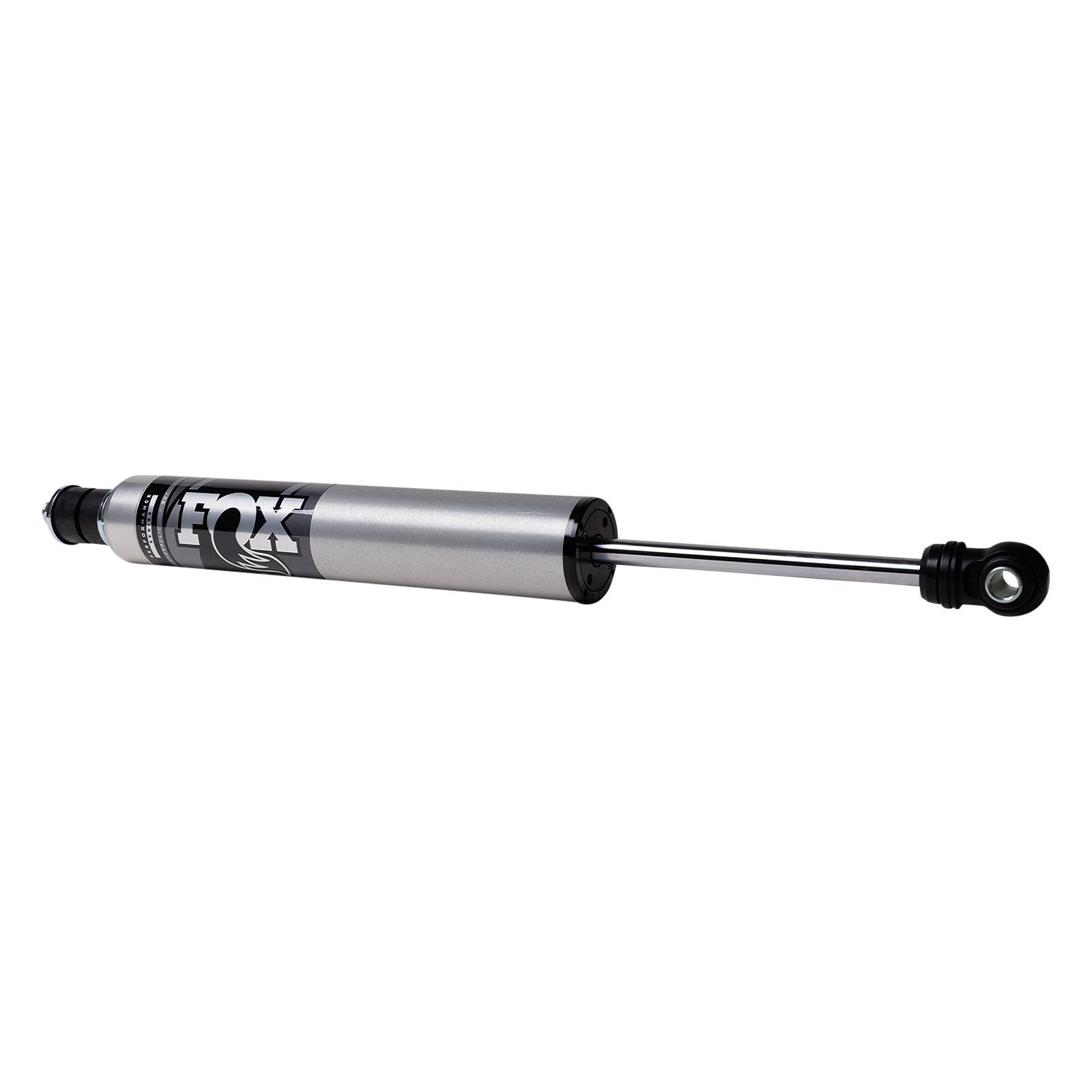

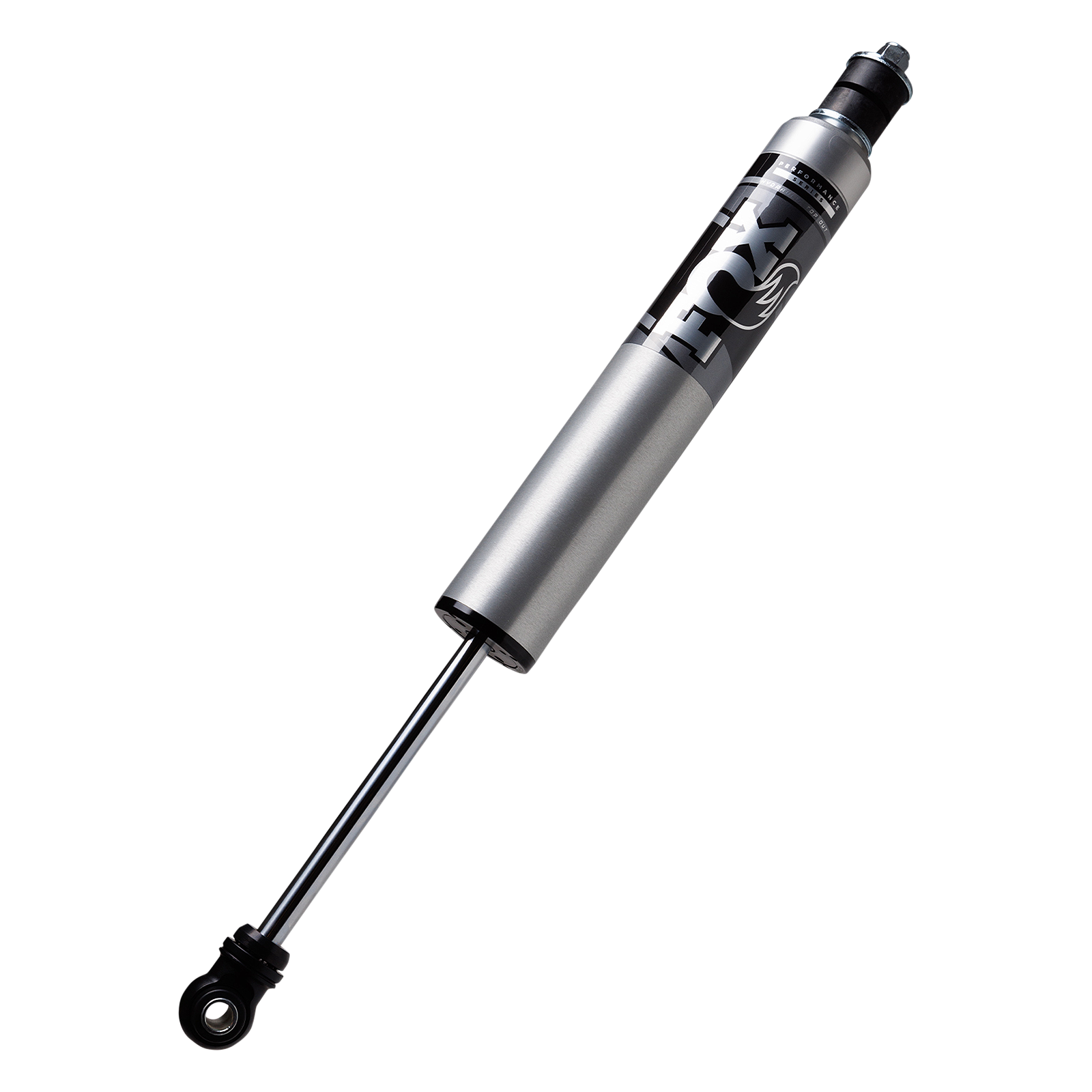

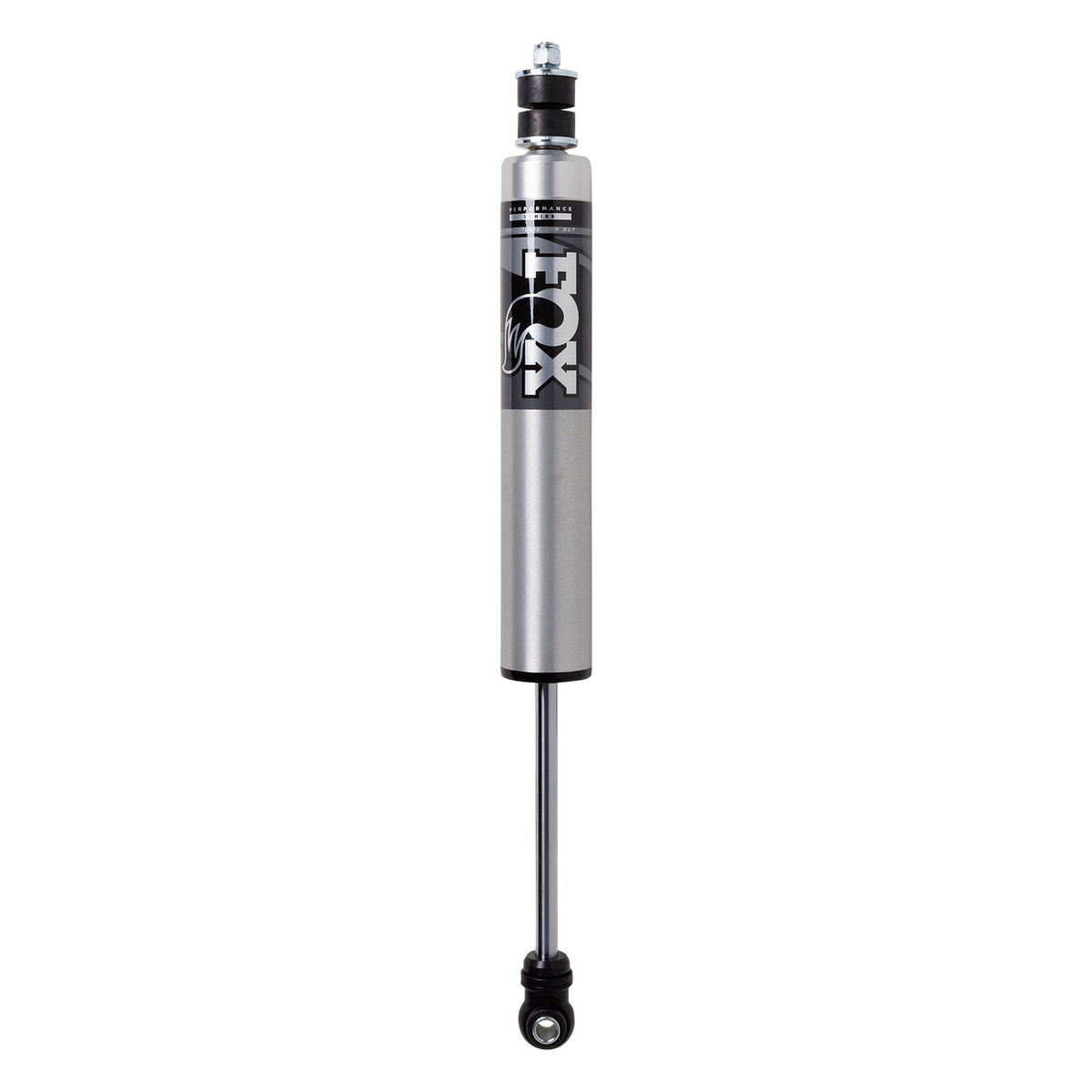

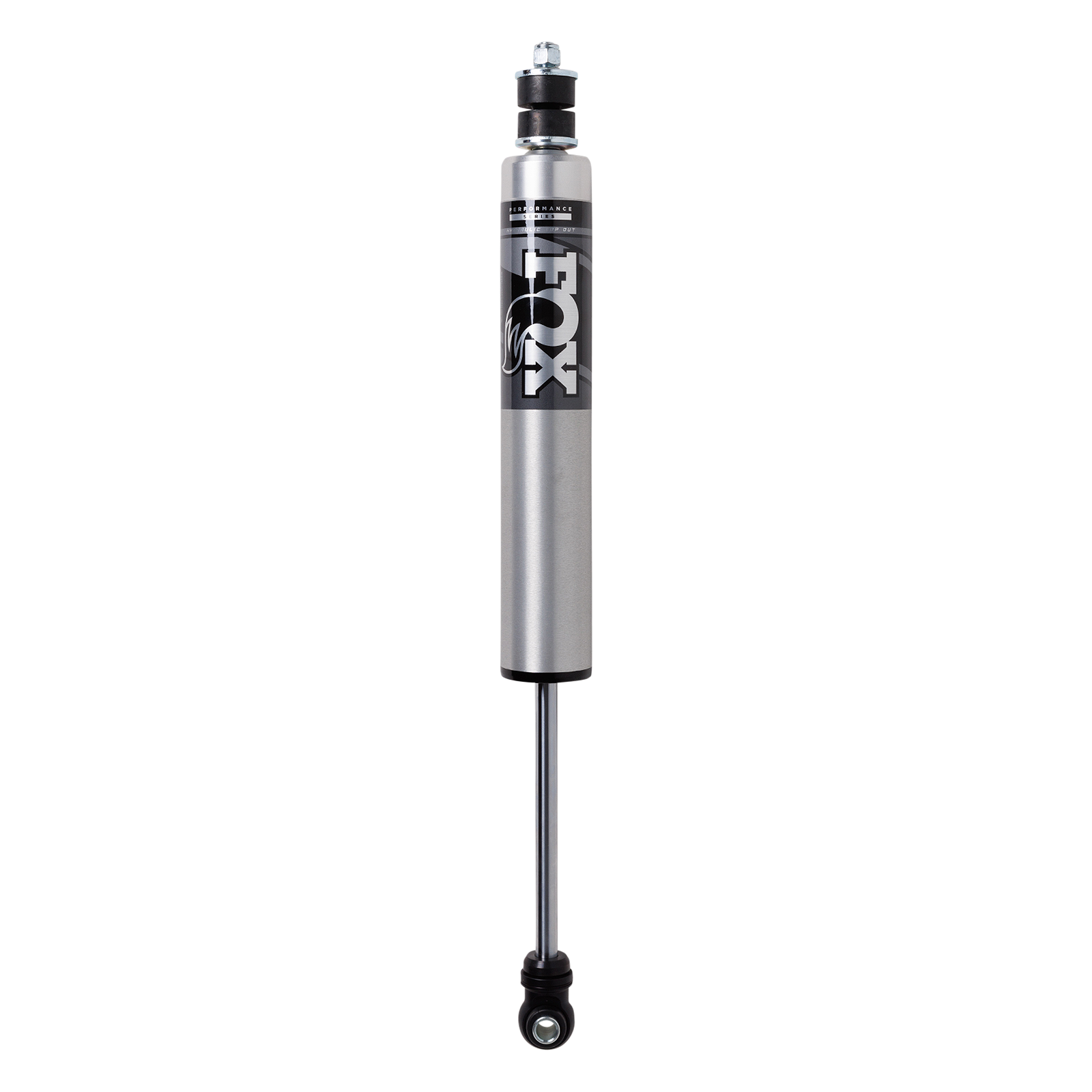

FOX 2.5 IFP Front Shock w/HTO | 2-3 Inch Lift | Performance Series | Ram 2500 (14-27) & 3500 (13-27)

Brand: FOX
SKU: FOX98724045
Kit Component List

×

List Price

$346.95

Your Price

$346.95

Subtotal: $346.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_002_P_04.png

FOX 2.5 IFP Front Shock w/HTO | 2-3 Inch Lift | Performance Series | Ram 2500 (14-27) & 3500 (13-27)

$346.95

FOX 2.5 IFP Front Shock w/HTO | 2-3 Inch Lift | Performance Series | Ram 2500 (14-27) & 3500 (13-27)

$346.95

Select Parts

  Description SKU Quantity List Price Your Price Inventory Inventory Status
No products present in the kit

Upgrade the on-road comfort and off-road control of your 2014-2027 Ram 2500 or 2013-2027 Ram 3500 to FOX Performance Series 2.5 IFP (internal floating piston) Rear shocks with HTO (Hydraulic Top Out). The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.

Turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2.5” Impact extruded 6061-T6 aluminum shock body
  • Type II clear-anodized body plating
  • High-flow velocity-sensitive damping 5/8” hard chrome shaft
  • Internal floating piston (IFP)

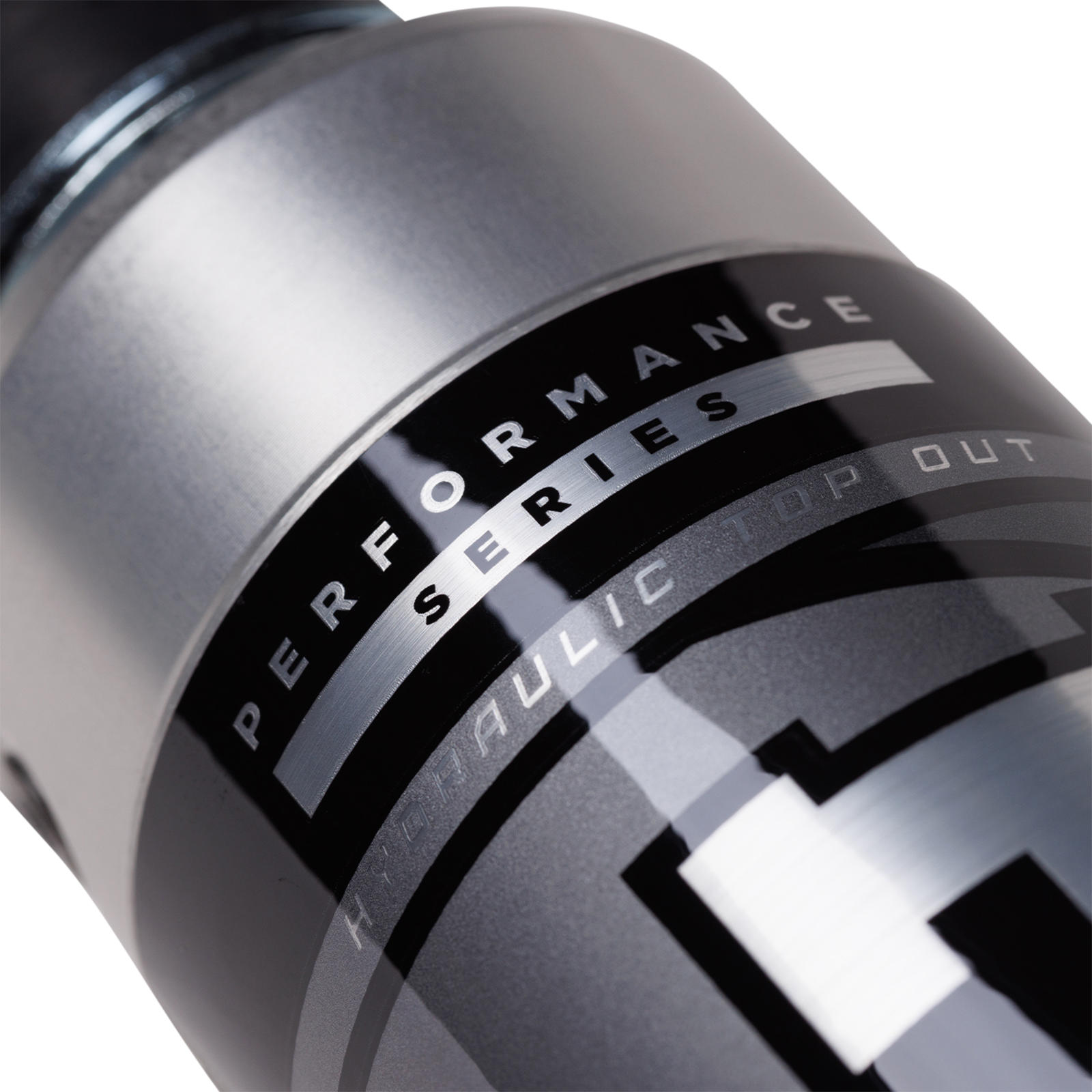

  • Hydraulic Top Out (HTO) piston
  • Adjustable Damping : No
  • Compressed Length : 16.28
  • Extended Length : 23.97
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lift Height : 2-3"
  • Lower Mount Type : Eyelet
  • Position : Front
  • Shaft Diameter : 5/8"
  • Travel Length : 7.69
  • Type : Smooth Body IFP
  • Upper Mount Type : Stem
