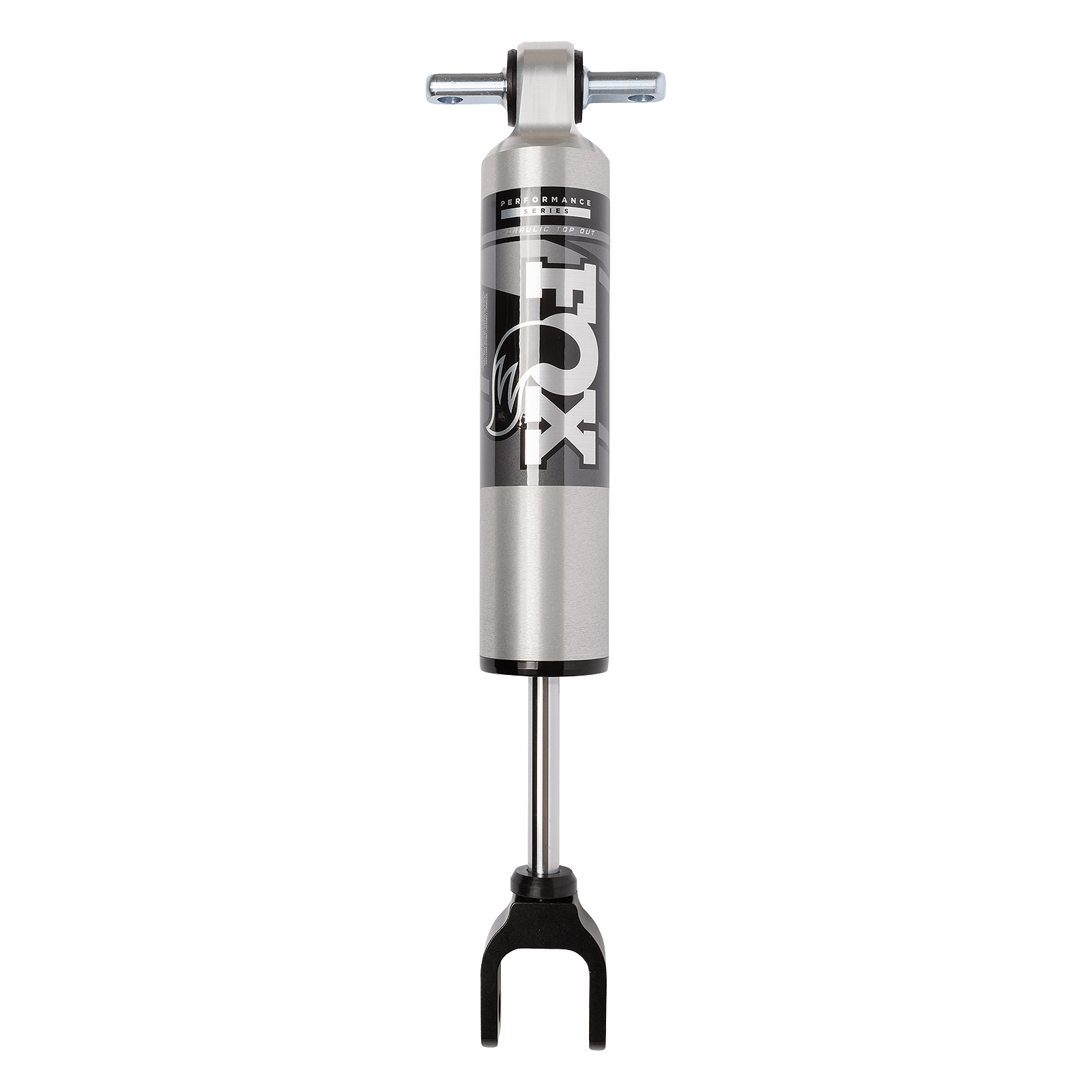

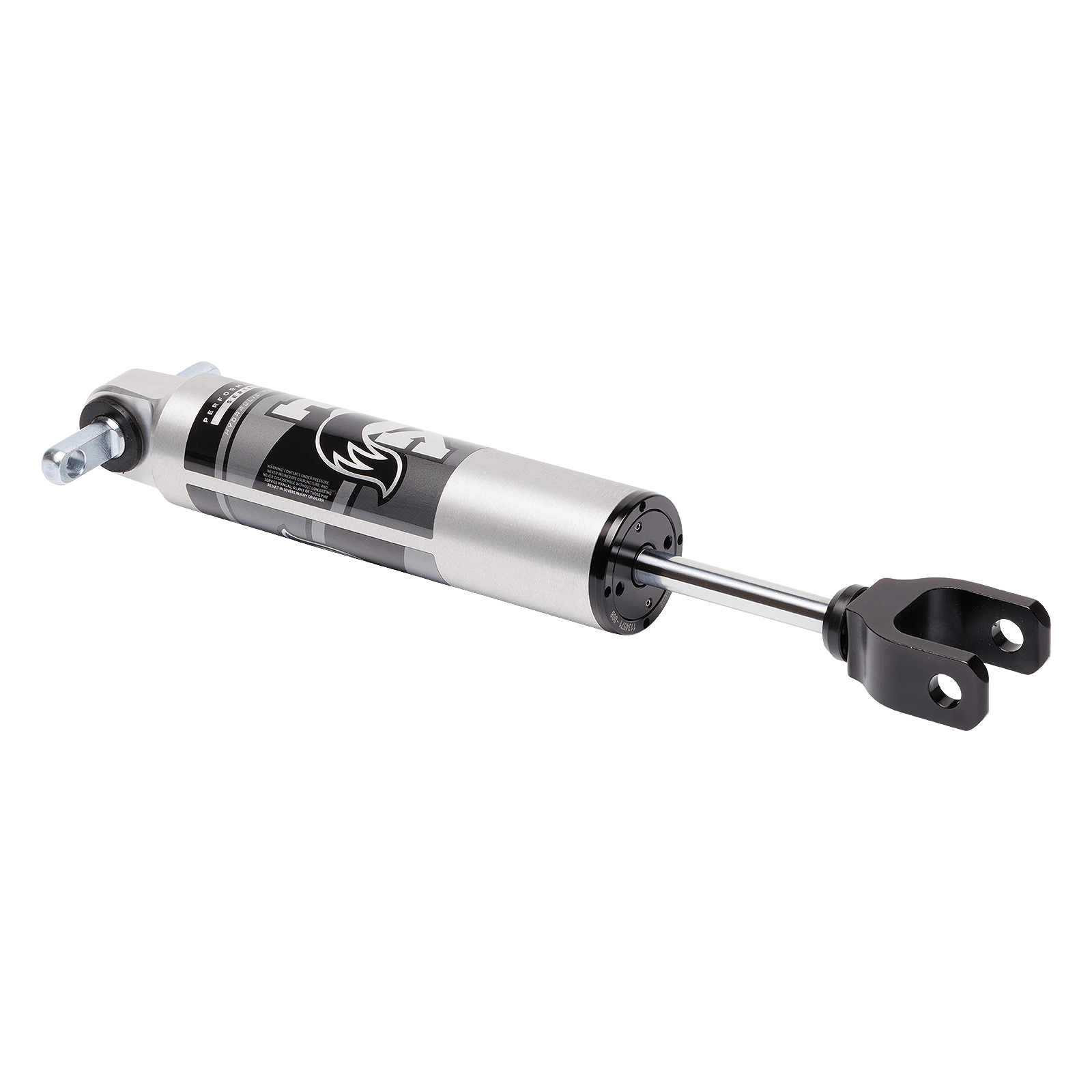

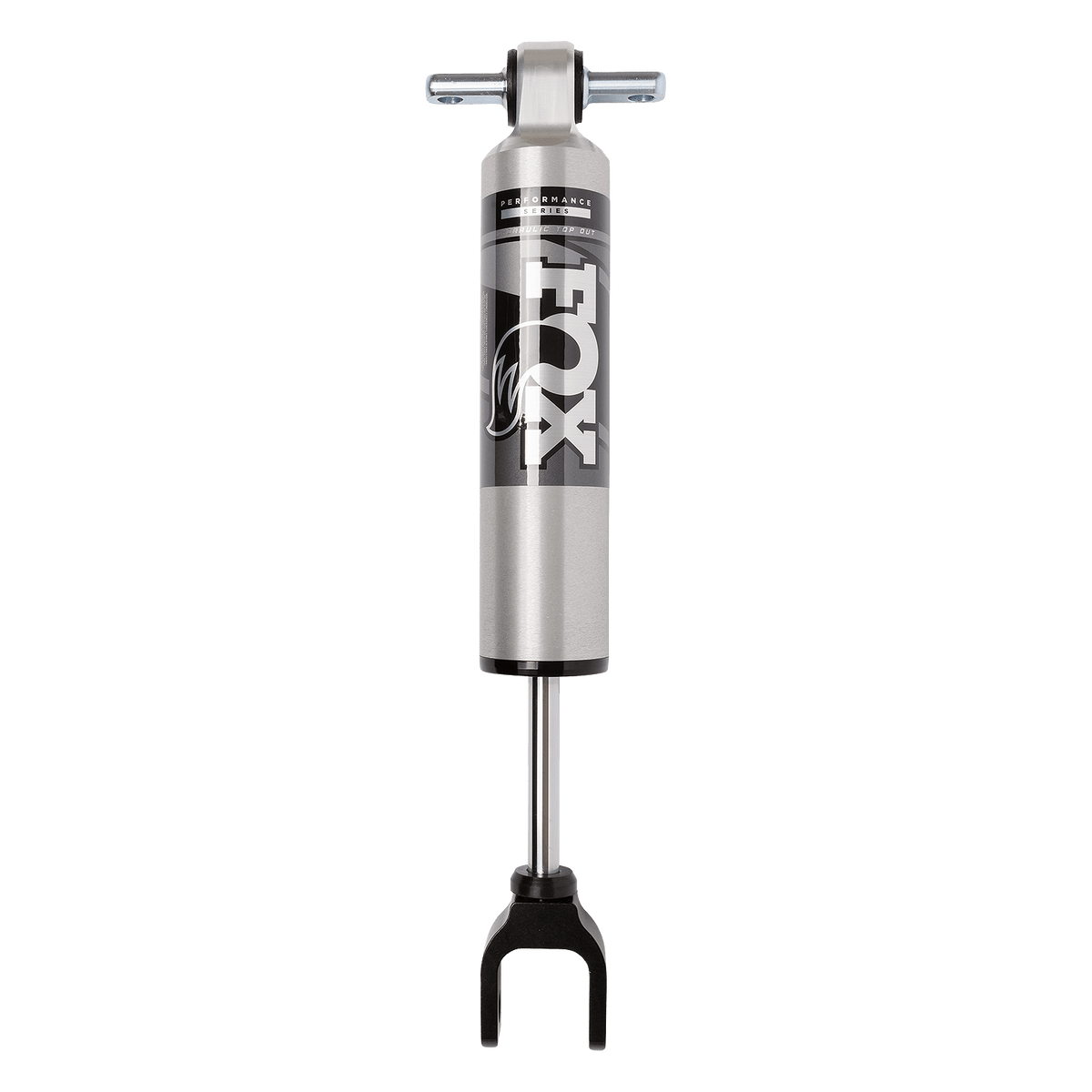

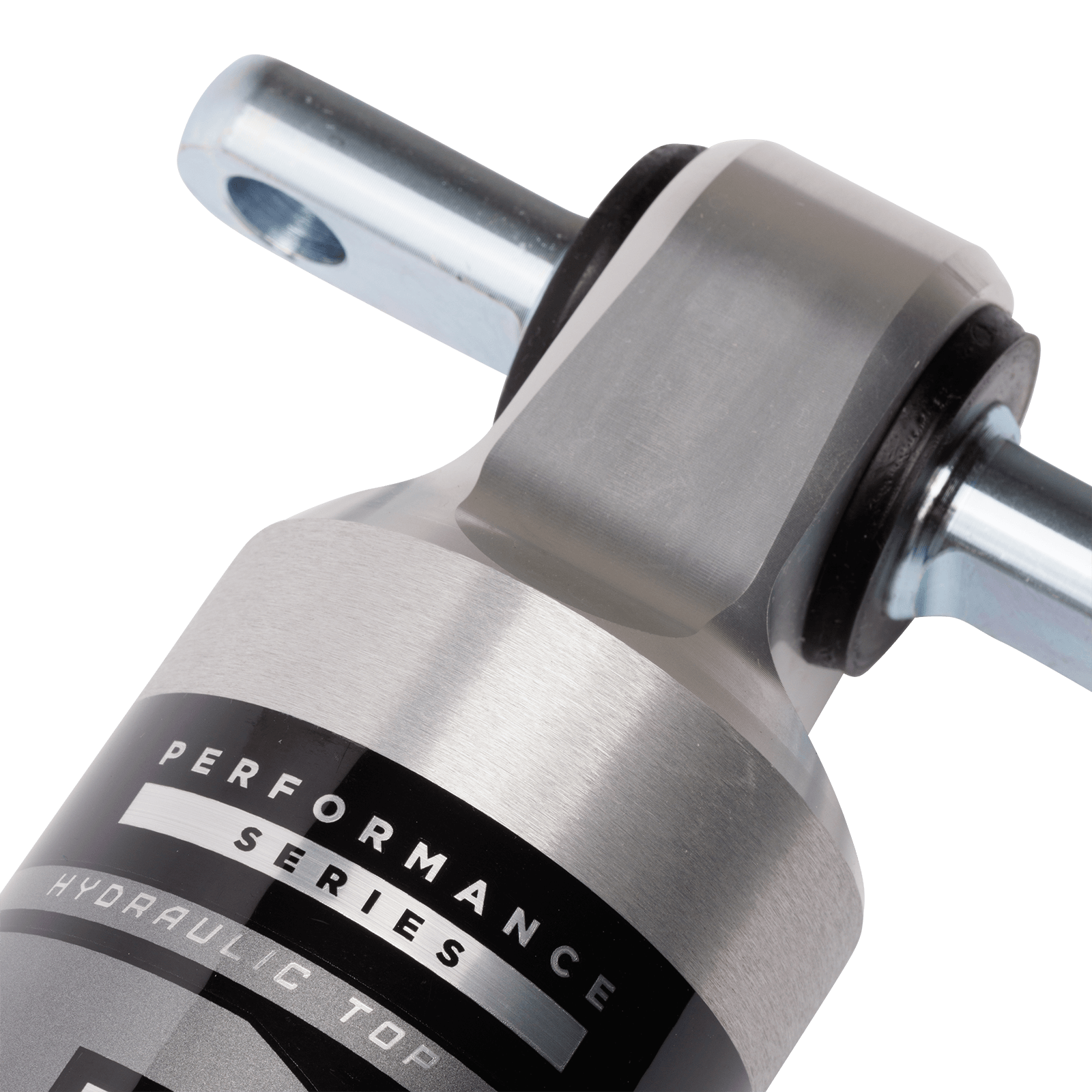

FOX 2.5 IFP Front Shock w/HTO | 1.5-2.5 Inch Lift | Performance Series | Chevrolet Silverado 2500/3500 (20-24)

Brand: FOX
SKU: FOX98724010
Kit Component List

×

List Price

$346.95

Your Price

$346.95

8 In Stock

Subtotal: $346.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_008_P04.png

FOX 2.5 IFP Front Shock w/HTO | 1.5-2.5 Inch Lift | Performance Series | Chevrolet Silverado 2500/3500 (20-24)

$346.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_008_P04.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_008_P07.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_008_P05.png

FOX 2.5 IFP Front Shock w/HTO | 1.5-2.5 Inch Lift | Performance Series | Chevrolet Silverado 2500/3500 (20-24)

$346.95
OVERVIEW

Upgrade the on-road comfort and off-road control of your 2020-2024 Chevy Silverado or GMC Sierra 2500/3500 4WD to FOX Performance Series 2.5 IFP (internal floating piston) Front shocks with HTO (Hydraulic Top Out). The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.

Turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  1. 2.5” Impact extruded 6061-T6 aluminum shock body
  2. Type II clear-anodized body plating
  3. High-flow velocity-sensitive damping
  4. 5/8” hard chrome shaft
  5. Internal floating piston (IFP)
  6. Hydraulic Top Out (HTO) piston
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Adjustable Damping : No
  • Compressed Length : 13.76
  • Extended Length : 18.95
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lift Height : 2-3.5"
  • Lower Mount Code : Clevis
  • Lower Mount Type : Clevis
  • Position : Front
  • Shaft Diameter : 5/8"
  • Travel Length : 5.18
  • Type : Smooth Body IFP
  • Upper Mount Code : Bar Pin
  • Upper Mount Type : Bar Pin
