Take
complete control of your BDS Performance Towing air spring system with the BDS
Performance Towing Air Control System. Engineered specifically for towing and
hauling, this Bluetooth-enabled, app-based single-path controller allows both
air springs to operate together, providing balanced load support and improved
vehicle stability when carrying heavy loads or towing a trailer.
Unlike
conventional air management systems, the BDS Air Control System offers an
industry-leading operating range from 0-125 PSI, making it the only controller
on the market capable of reducing air spring pressure all the way to 0 PSI.
This allows the suspension to return to its natural unloaded ride while still
providing the full pressure range needed to level heavy loads when the job
demands it.
Built
to outperform and outlast the competition, every major component is fully
serviceable. The sealed air compressor, ECU, pressure sensor, and exhaust
solenoid can all be replaced individually using standard hand tools,
eliminating the need to replace the entire system if service is ever required.
The compressor is specifically designed to live under the vehicle, featuring a
fully sealed construction to withstand water, dirt, salt, and harsh road
conditions that quickly shorten the life of many competing systems.
Installation
is equally straightforward. The system requires only two electrical connections
directly to the battery power and ground with no chassis ground required at the
compressor location. Sealed electrical connectors throughout the system provide
long-term reliability in harsh environments, while modern Bluetooth hardware
delivers exceptional wireless range and dependable communication with the
mobile app. An integrated status LED on the ECU provides quick visual
diagnostics and system feedback whenever needed.

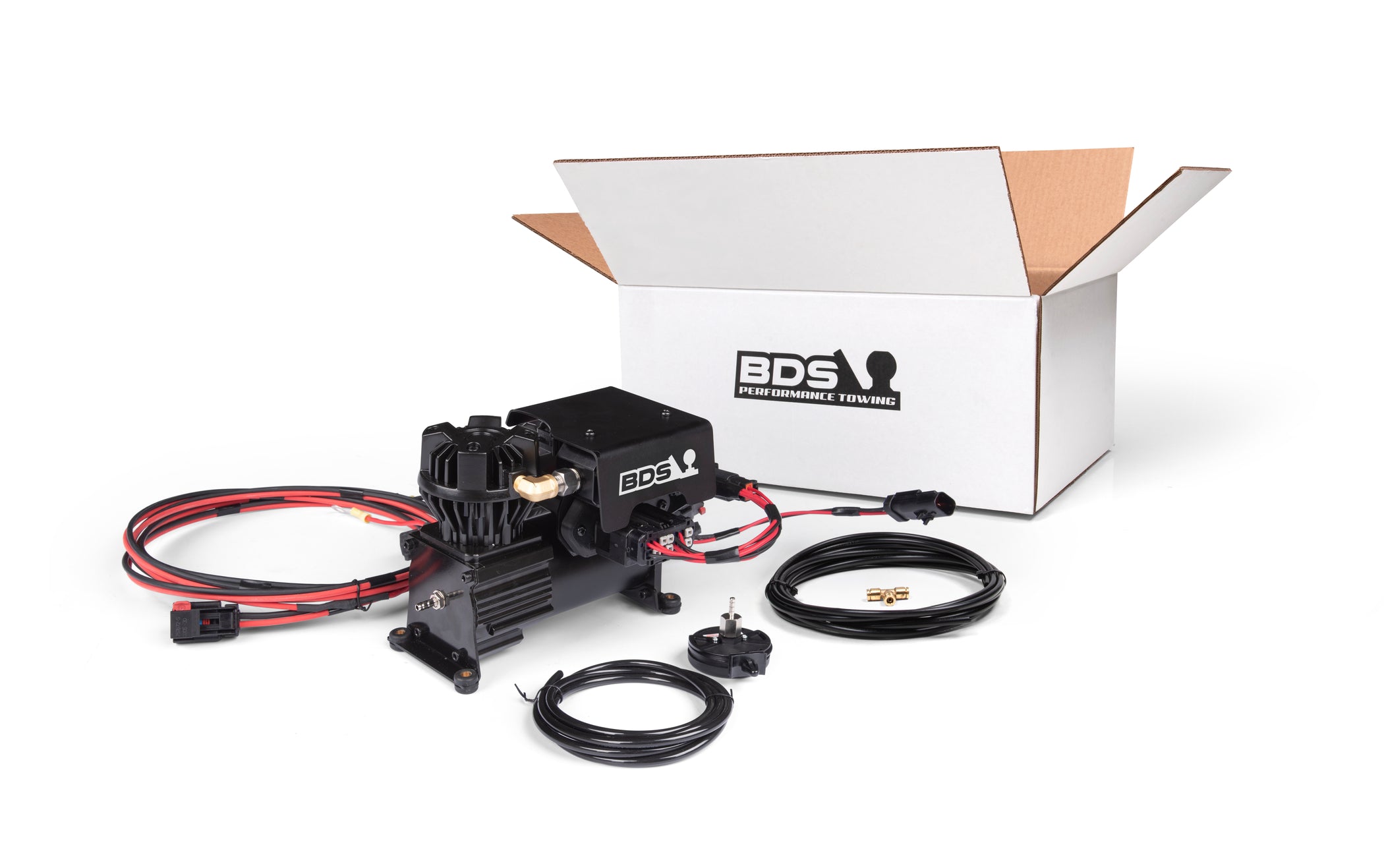

Each
kit includes a DOT-approved tee fitting and 20 feet of 1/4-inch DOT air line,
making it easy to connect to your BDS Performance Towing air springs for a
clean, professional installation. Designed for reliability, serviceability, and
unmatched performance, the BDS Performance Towing Air Control System sets a new
standard for air spring control.
The BDS
Performance Towing Air Control System also features advanced onboard
diagnostics that continuously monitor system operation for potential issues,
including air spring leaks, compressor performance, pressure sensor faults, and
other system conditions. If a problem is detected, the controller provides
diagnostic feedback through the mobile app and ECU status LED, helping users
quickly identify the source of the issue. Because the system is designed to be
fully serviceable, many common repairs can be completed by replacing individual
components rather than the entire controller, minimizing downtime and reducing
long-term ownership costs.
