6 Inch Lift Kit | Ford F250/F350 Super Duty (17-19) 4WD | Diesel
Brand:
Zone Offroad
SKU:
ZONF52N
×
- $1,387.45
- $1,387.45
- Unit price
- per
List Price
Your Price
Select Parts

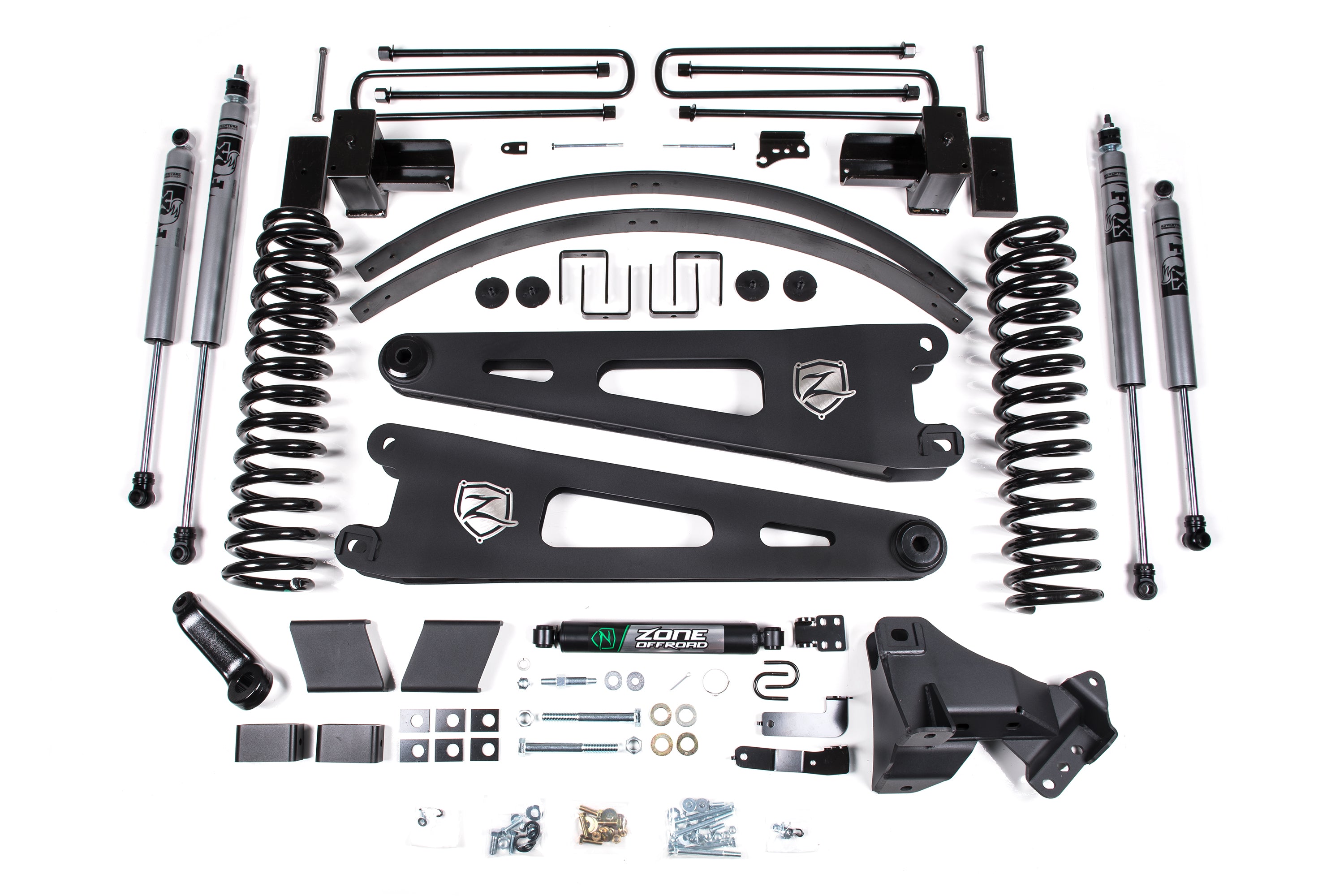

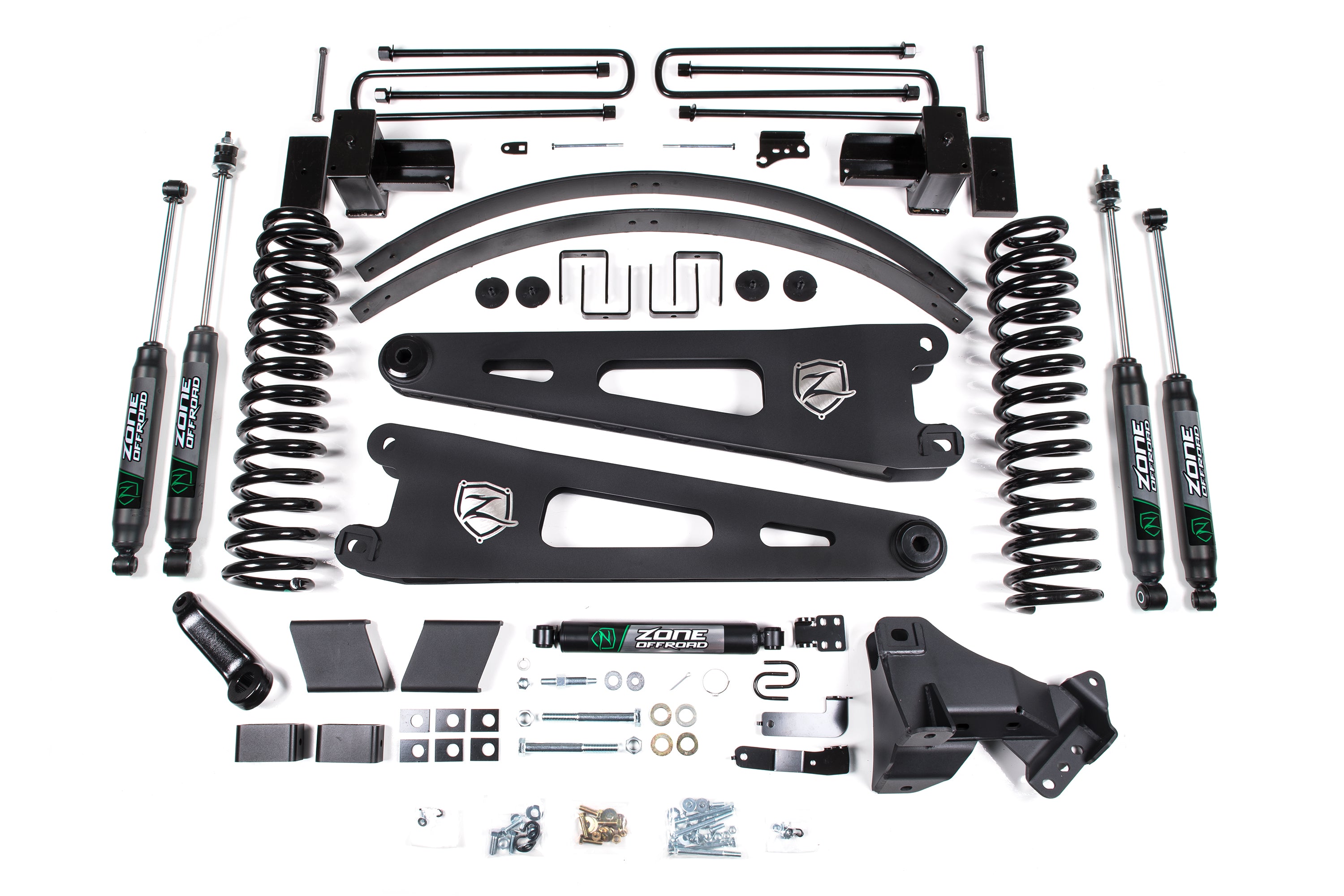

Take your Super Duty to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for 38" tires.
Features & Benefits
- High strength front coil springs improve ride quality HD radius arm to correct caster while maximizing ground clearance.
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle.
- Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles.
- Replacement rear lift blocks, add-a-leafs and u-bolts to lift and level the stance
Recommended Tires & Wheels
(Trimming may be required)
- 38 x 13.5 with 17 x 10 and 5 in. Backspace
- 38 x 13.5 with 18 x 10 and 5 in. Backspace
- 38 x 13.5 with 20 x 10 and 5 in. Backspace
Rear Lift Option
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
- Factory Overload – 3 Leaf
- NO Overload – 2 Leaf
Shock Option

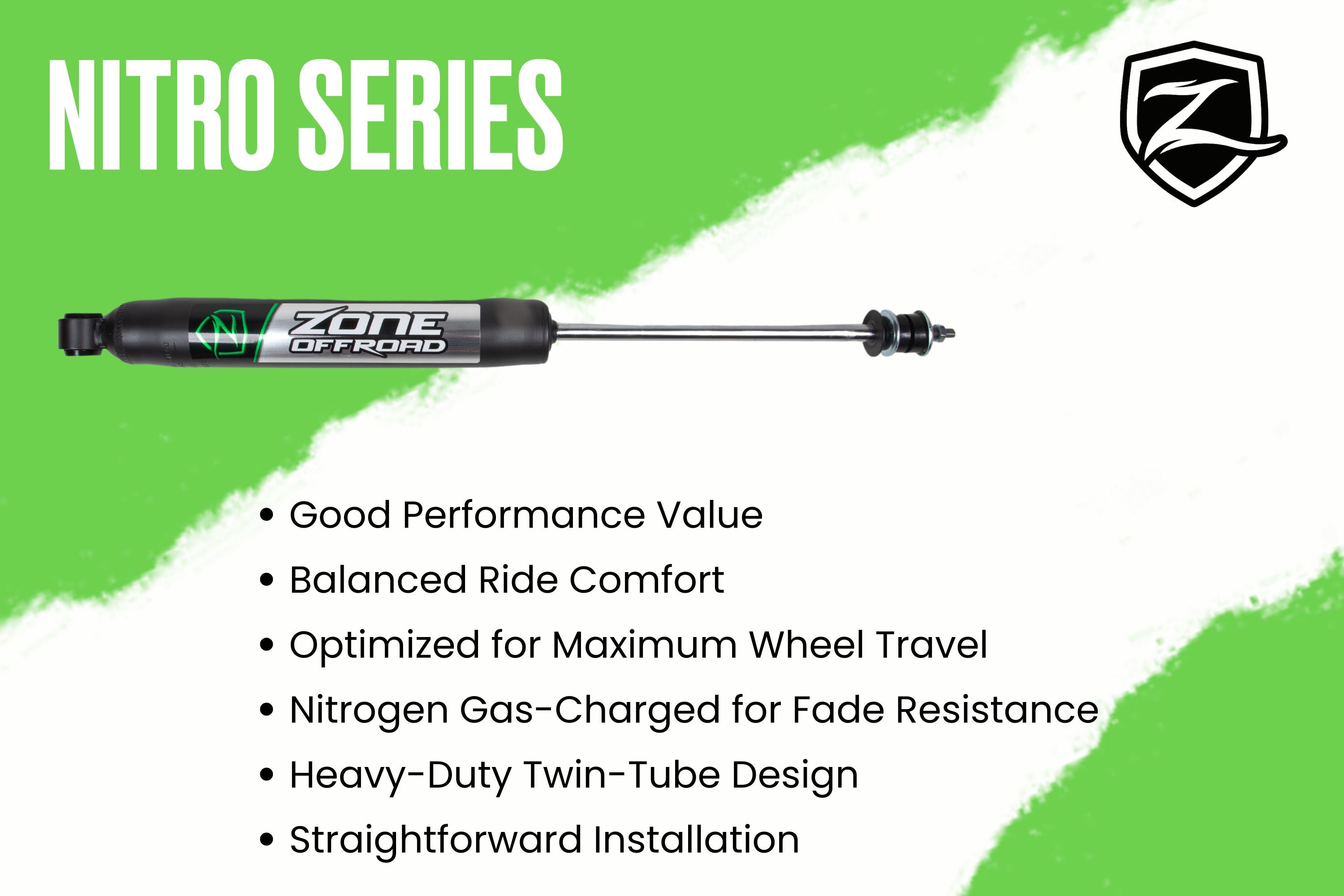

Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

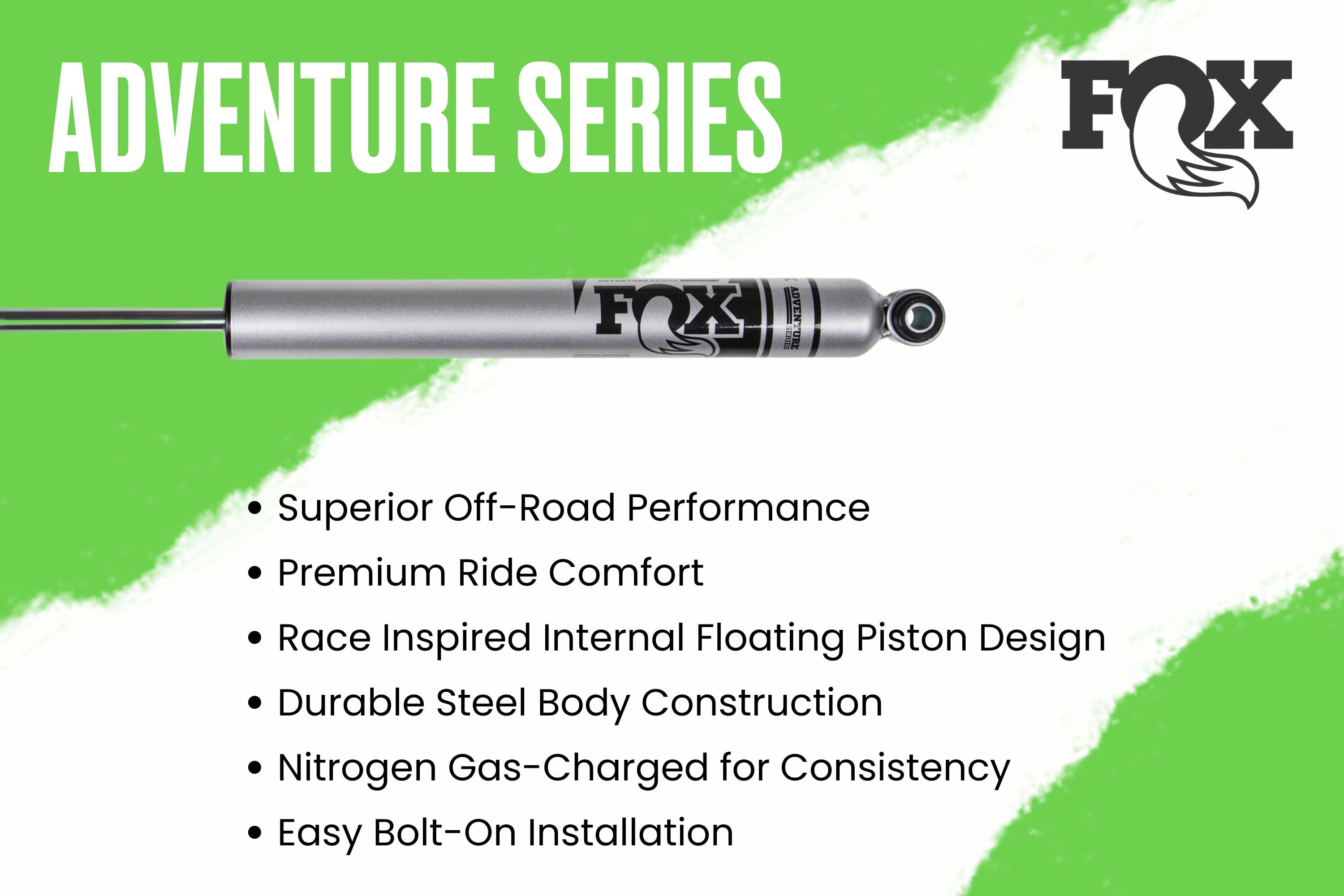

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Diesel Model Only.
- Check your rear springs to determine if your truck is equipped with standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring; see "Learn More" image for help.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- Fits SRW models only
Wheel and Tire:
- 38x13.50 Tires may require minor trimming
- Factory wheels fit when paired with factory / original equipment tire size
