4 Inch Lift Kit | GMC Sierra 1500 Denali (19-24) 4WD

Brand: Zone Offroad
SKU: ZONC70
Kit Component List

×

List Price

$1,754.09

Your Price

$1,754.09

Out of Stock - In Production

Subtotal: $1,754.09

I have read the Important Notes and Verified my Vehicle Fitment

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zon_C70_01.jpg

4 Inch Lift Kit | GMC Sierra 1500 Denali (19-24) 4WD

$1,754.09
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zon_C70_01.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zon_C70_02.jpg

4 Inch Lift Kit | GMC Sierra 1500 Denali (19-24) 4WD

$1,754.09

Select Parts

  Description SKU Quantity List Price Your Price Inventory Inventory Status
No products present in the kit
OVERVIEW

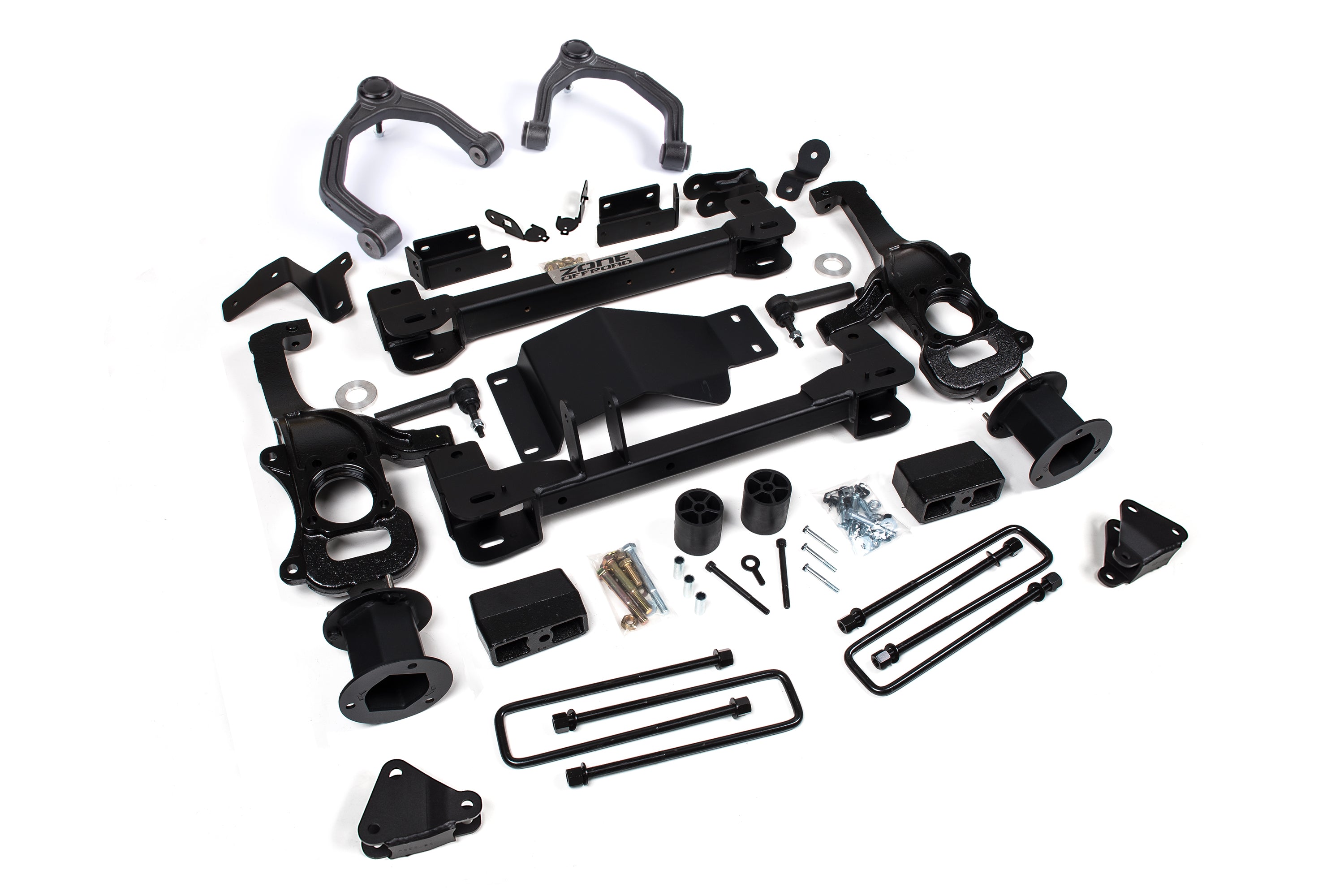

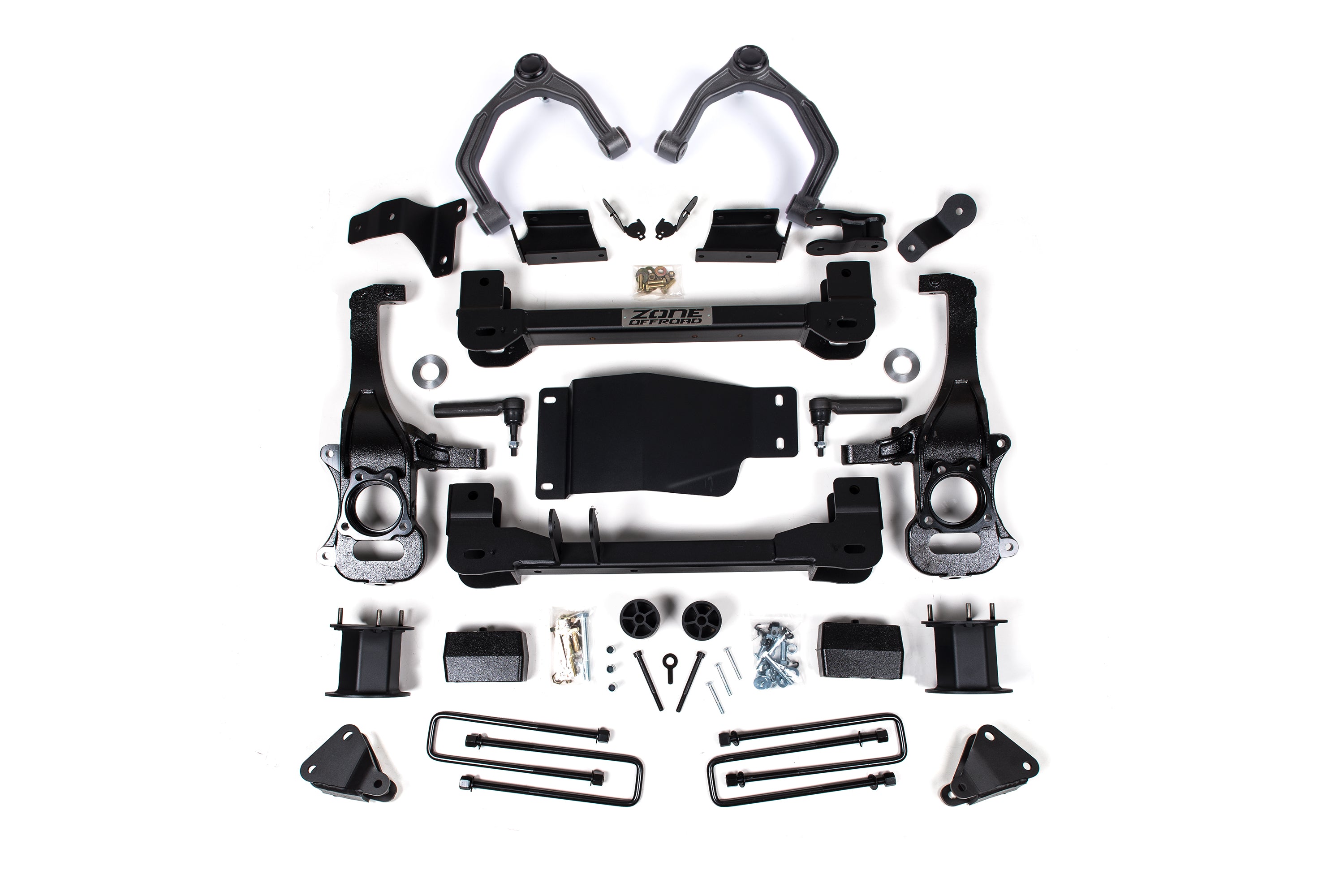

Take your GMC Denali 1500 to new heights with this 4" lift kit from Zone Offroad. These kits are designed to allow full functionality of the ARC (adaptive ride control) system factory installed on the Denali to retain all the features of your truck at the new lift height. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, ARC sensor brackets, adventure series upper control arm, differential relocation brackets and more. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Features & Benefits

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles and new tie rod ends to correct steering geometry and maintain ESC system compatibility
  • Strut spacers and shock relocation brackets to maintain ARC functionality
  • Differential skid plate for additional offroad protection
  • Adventure Series upper control arms included for additional strength and durability.
  • Rear lift blocks and u-bolts to lift and level the stance
  • Sway bar, brake line and bump stop relocation brackets to correct operating angles

Recommended Tires & Wheels

(Trimming may be required)

  • See Notes with and in. Backspace
IMPORTANT NOTES
  1. Fits Gas and Diesel Models.
  2. Optional front skid plate will not work with 2.7L Turbo or Diesel Engines.
  3. Requires frame bracket modification.
  4. WILL work with Adaptive Ride Control (ARC) equipped models.
  5. This system has not been tested on models equipped with Super Cruise.
  6. If equipped with a mono-leaf rear spring please use part #UBT4064 (Qty 4 required).

Tire Fitments:

GMC: 295/70 on 17x8, 17x9 w/ 4.5" BS* 295/65 on 20x9 w/ 4.5-6.25" BS* 35 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS*

*Trimming may be required Stock 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels CAN be reinstalled.

17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.

All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.

INSTALLATION
SPECIFICATION
  • Front Lift Method : Strut Spacer
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : No
  • Lift Height : 4-5.5"
FITMENT
2024|GMC|Sierra 1500|Denali Ultimate|4WD|GAS|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2020|GMC|Sierra 1500|Denali|4WD|GAS|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2023|GMC|Sierra 1500|Denali|4WD|DIESEL|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2021|GMC|Sierra 1500|Denali|4WD|GAS|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2022|GMC|Sierra 1500|Denali Ultimate|4WD|*|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2021|GMC|Sierra 1500|Denali|4WD|DIESEL|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2019|GMC|Sierra 1500|Denali|4WD|GAS|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2020|GMC|Sierra 1500|Denali|4WD|DIESEL|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2024|GMC|Sierra 1500|Denali|4WD|DIESEL|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2024|GMC|Sierra 1500|Denali Ultimate|4WD|DIESEL|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2023|GMC|Sierra 1500|Denali|4WD|GAS|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2023|GMC|Sierra 1500|Denali Ultimate|4WD|DIESEL|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2022|GMC|Sierra 1500|Denali|4WD|*|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2023|GMC|Sierra 1500|Denali Ultimate|4WD|GAS|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||;2024|GMC|Sierra 1500|Denali|4WD|GAS|4|18833|Suspension Lift Kit|Each|1||||Front and Rear|168|4"||||||||||
