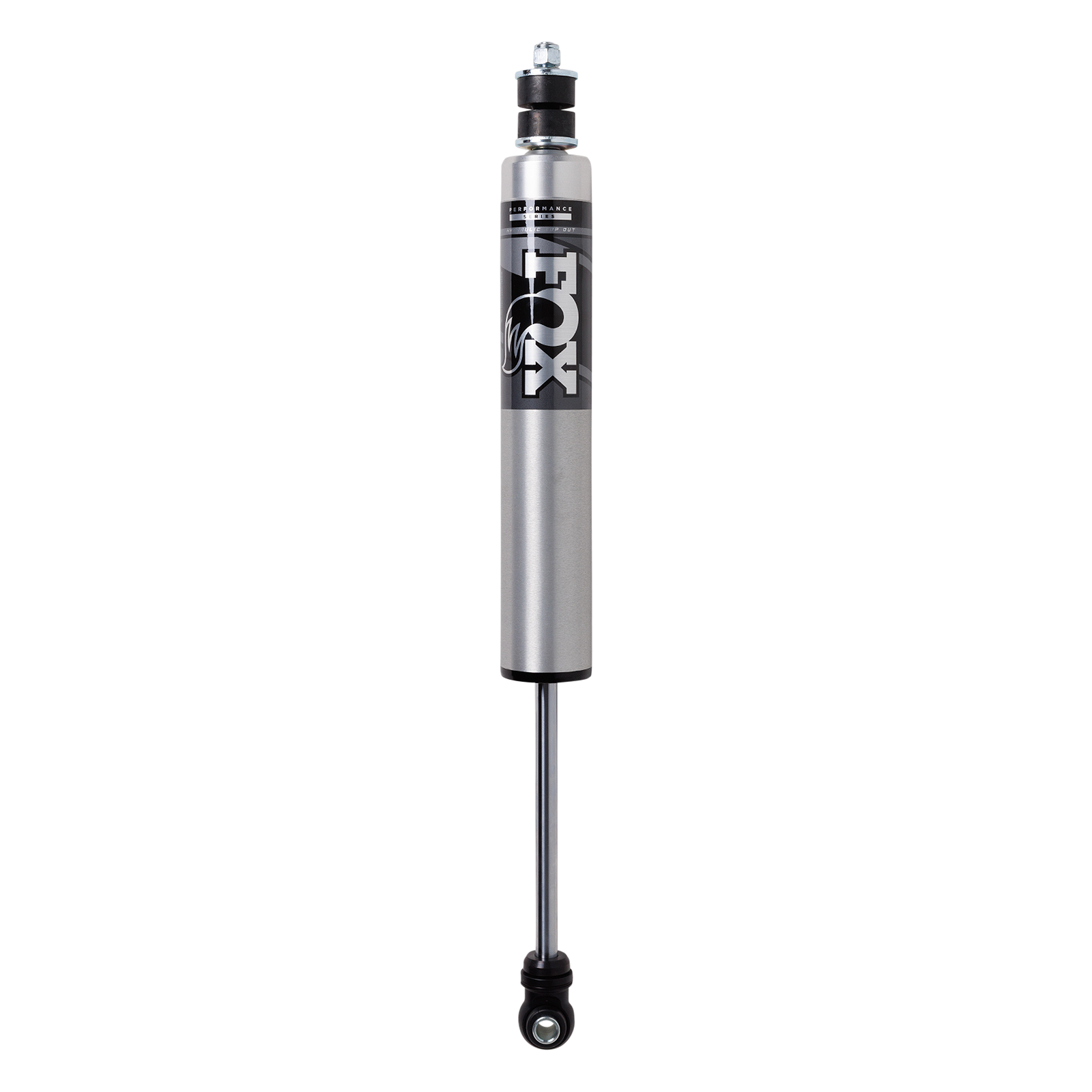

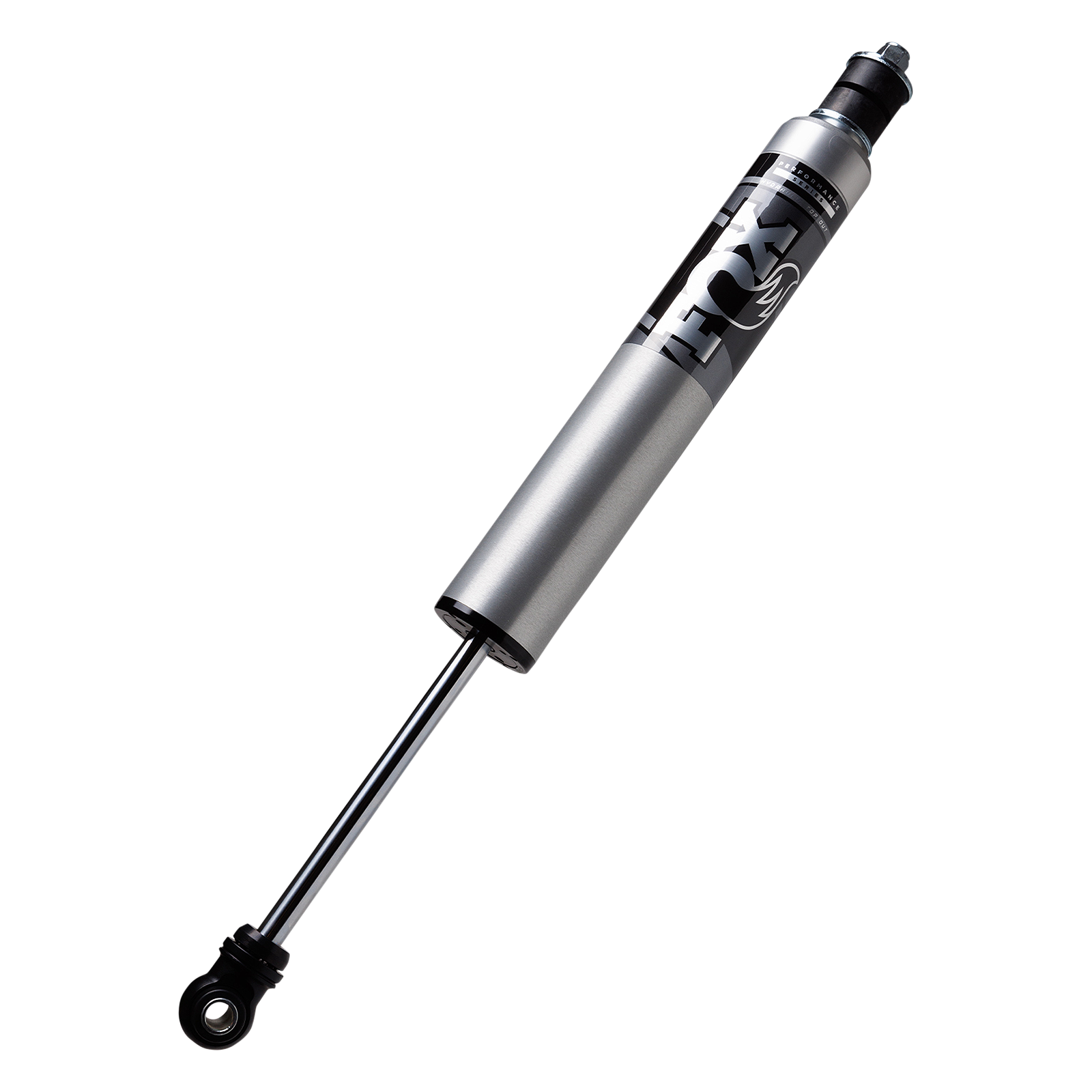

FOX 2.5 IFP Front Shock w/HTO | 4.5-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26)

Brand: FOX
SKU: FOX98724020
Kit Component List

×

List Price

$346.95

Your Price

$346.95

134 In Stock

Subtotal: $346.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_002_P_04.png

FOX 2.5 IFP Front Shock w/HTO | 4.5-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26)

$346.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_002_P_04.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_002_P_01.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_002_P_05.png

FOX 2.5 IFP Front Shock w/HTO | 4.5-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26)

$346.95
OVERVIEW

Upgrade the on-road comfort and off-road control of your 2017-2026 Ford F-250 or F-350 Super Duty 4WD to FOX Performance Series 2.5 IFP (internal floating piston) Front shocks with HTO (Hydraulic Top Out). The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.

Turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2.5” Impact extruded 6061-T6 aluminum shock body
  • Type II clear-anodized body plating
  • High-flow velocity-sensitive damping
  • 5/8” hard chrome shaft
  • Internal floating piston (IFP)

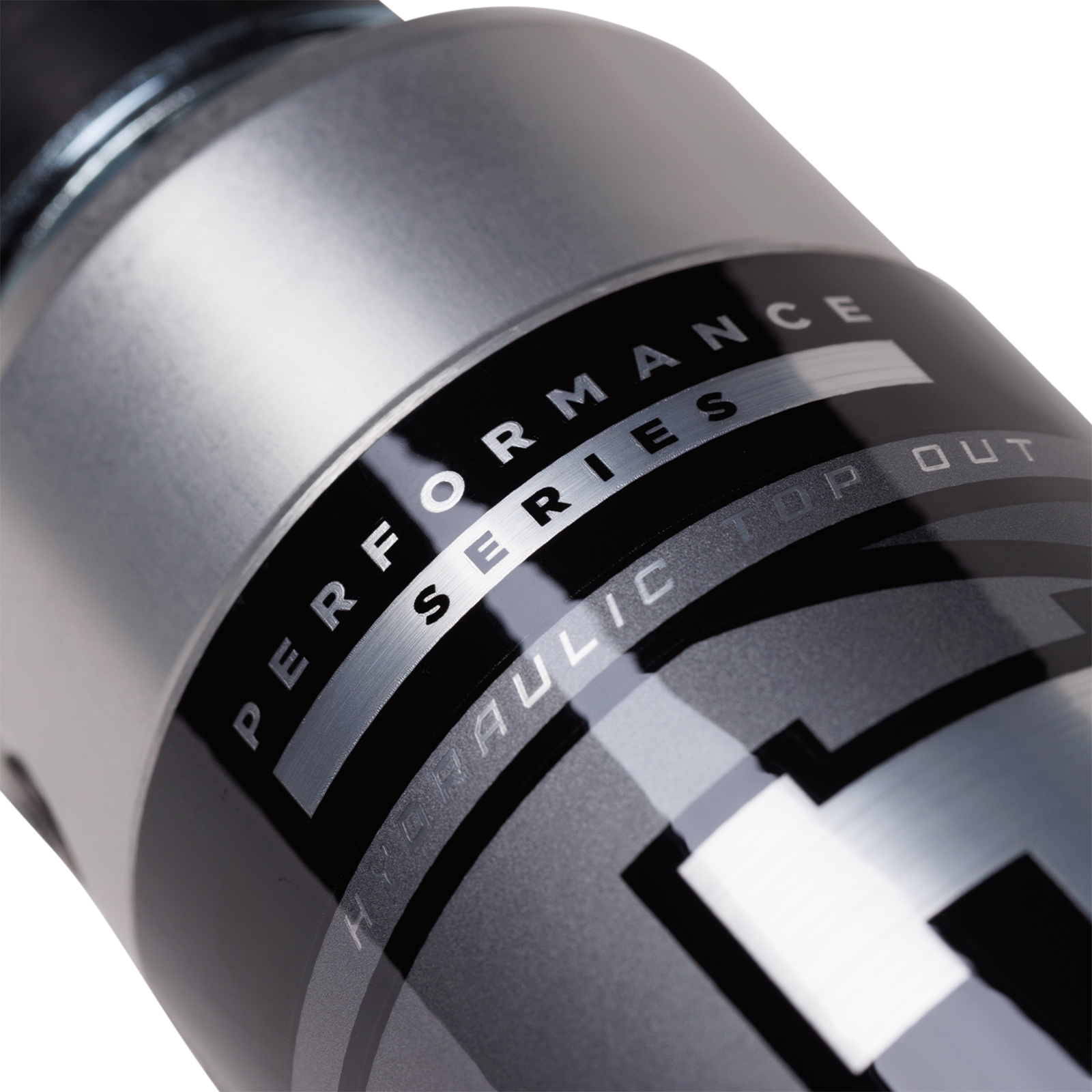

  • Hydraulic Top Out (HTO) piston
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Adjustable Damping : No
  • Compressed Length : 17
  • Extended Length : 26.29
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lift Height : 4-5.5", 6-7.5"
  • Lower Mount Code : EB2
  • Lower Mount Type : Eyelet
  • Position : Front
  • Shaft Diameter : 5/8"
  • Travel Length : 9.29
  • Type : Smooth Body IFP
  • Upper Mount Code : Stem
  • Upper Mount Type : Stem
FITMENT
2026|Ford|F-250 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|1||||N/A|1|||||||||||;2026|Ford|F-350 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|1||||N/A|1|||||||||||
